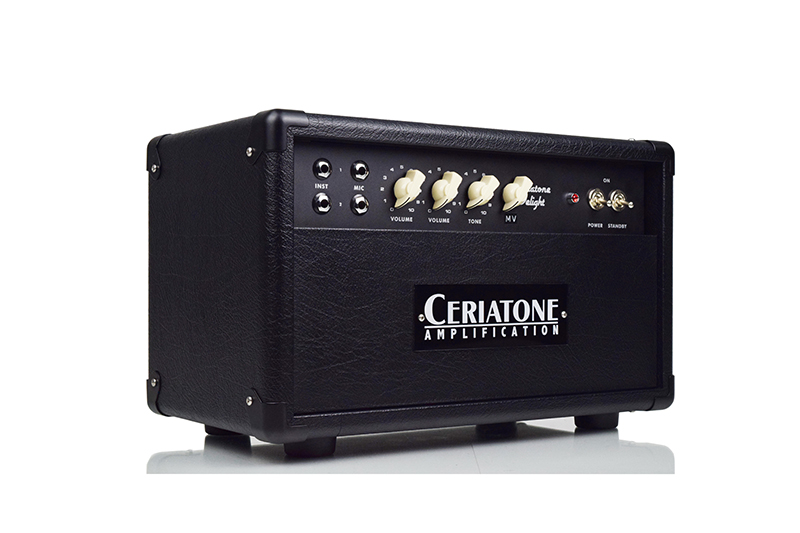

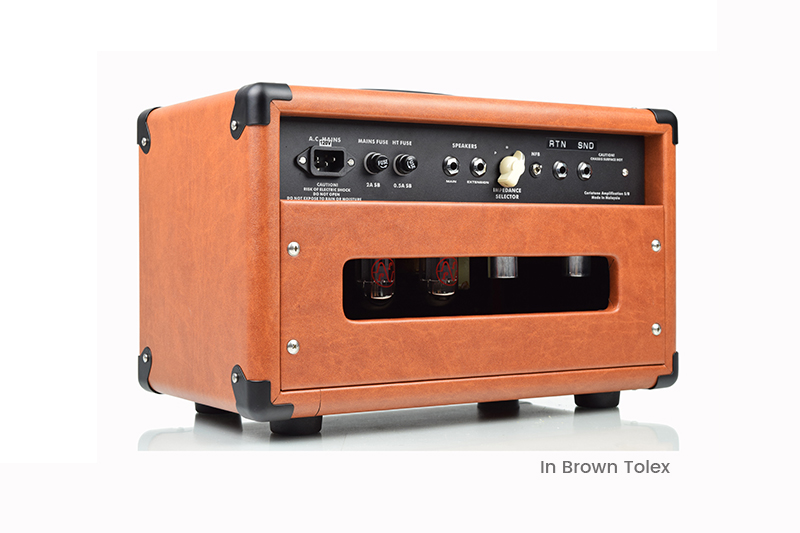

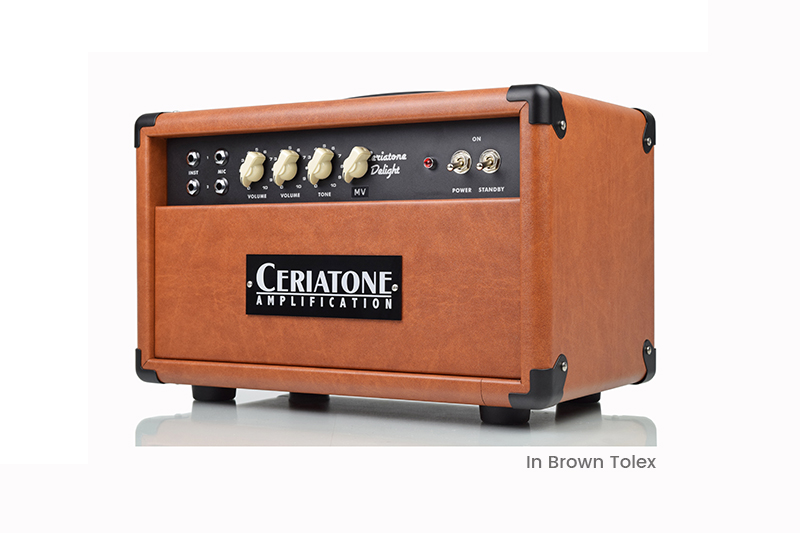

American Classics 5E3

  • $ 845.00

Model Descriptions:

The classic American amplifiers of the ‘50s and ‘60s inspired us to create the, errrrr, American Classic series.

The Ceriatone 5E3 amplifier is based on the dual 6V6 1×12 combo made in the mid and late ‘50s.  For many guitarists, the 5E3 is a deserted island amplifier, capable of producing some of the most sought after tones in jazz, blues, country, and rock.

Because of the topology of this circuit, it lends itself to thick clean tones that suit single-coil guitars particularly well, and as it is turned up creates an extremely thick, harmonic-laden overdriven tone.  While it can still be fairly loud, this is a great amp for home, studio, and gigs of nearly all practical sizes.  We have added a 3-way NFB switch to further tune the response of the power amplifier to your needs, while staying true to the overall vibe of the amplifier.

Like other Ceriatone amps, we have labored carefully to select the finest components to suit the design, and the 5E3 uses our specially designed custom transformers for superior reliability, frequency response, and feel.

Head Dimension : 15.75 x 9.35 x 10 inches / Actual Weight: 13kg

Combo 1×12 Dimension : 18.35 x 10.35 x 21.5 inches / Actual Weight Sans Speaker:

YouTube Video Thumbnail
American Classics 5E3 - Clip 1
YouTube Video Thumbnail
American Classics 5E3 - Clip 2
YouTube Video Thumbnail
American Classics 5E3 - Clip 3
YouTube Video Thumbnail
American Classics 5E3 - Clip 4
Specifications
Power Output
12 Watt
Feature Overview
  • Dual channel (Normal, Bright) each with High, Low Inputs
  • Normal Volume, Bright Volume, and Tone controls
  • 3-way NFB switch
  • Tubes
  • Power: 2 x 6V6GT
  • Preamp: 1 x 12AX7/ECC83, 1 x 12AY7
  • Rectifier: 1 x 5Y3GT
  • Complete Amp
    Head
    Complete Head Unit
    $ 845.00
    17.0 KG
    Full working chassis in head cabinet.
    Options
    Without tubes
    $ 720.00
    17.0 KG
    Full working chassis without tubes in head cabinet
    Without head cabinet
    $ 715.00
    11.0 KG
    Full working chassis without head cabinet
    Without head cabinet and tubes
    $ 590.00
    11.0 KG
    Full working chassis without tubes and head cabinet
    Combo
    Complete Combo 1x12 Unit
    $ 935.00
    31.0 KG
    Full working chassis in combo 1x12 cabinet, sans speaker. Email us to enquire on speaker choice.
    Kits
    Package 1
    Head/Combo
    $ 320.00
    6.0 KG
    All components with unassembled board, front plate, rear plate, and chassis. No OT, no PT, no tubes and no cabinet.
    Package 2
    Head/Combo
    $ 440.00
    11.0 KG
    All components with unassembled board, front plate, rear plate, chassis, OT and PT. No tubes and no cabinet.
    Package 1 with assembly
    Head/Combo
    $ 470.00
    6.0 KG
    All components with assembled board, front plate, rear plate, and fully assembled in chassis. No OT, no PT, no tubes and no cabinet.
    Add-On/Parts
    Board
    Unassembled board
    $ 130.00
    2.5 KG
    Cabinet
    Head
    $ 130.00
    15.0 KG
    Weight is for empty head cabinet only
    Combo 1 x 12 cabinet
    $ 220.00
    29.0 KG
    Price and weight is without speaker(s). Email us to enquire on speaker choice.
    Chassis
    Steel (head/combo)
    $ 60.00
    4.0 KG
    Laser Punched Steel, Thickness 1.5 mm
    Faceplate
    Front plate
    $ 15.00
    0.5 KG
    Back plate
    $ 15.00
    0.5 KG
    Trannies
    Power & output trans
    $ 120.00
    7.0 KG
    Tubes
    1x 12AY7, 1x 12AX7, 2 x 6V6GT, 1 x 5Y3GT
    $ 125.00
    3.5 KG
    Documentation
    Layout
    American Classics 5E3

    Layout

    American Classics 5E3
